About

X Industry Limited

X Industry Limited——Global leader in silicon-based materials

[Company Overview]
As a benchmark company in China's silicon-based materials industry, X Industry Limited has been focusing on the research and development and manufacturing of silicon materials for 21 years since it took root in Linzhou County, Anyang, the heartland of the Central Plains in 2003. It has now developed into a modern high-tech enterprise integrating polysilicon purification, silicon wafer processing, and ferroalloy new material research and development. The company covers an area of ​​80,000 square meters, equipped with 35 intelligent production lines, and a professional team of 180 people delivers an average of 700+ major projects per year. Its products cover the global industrial chain of photovoltaics, semiconductors, silicones, etc.

[Core Advantages]
✅ Industry Depth: 21 years of experience in silicon-based material R&D and intelligent manufacturing, mastering 28 core technology patents such as polysilicon purification and monocrystalline silicon growth
✅ Scale Guarantee: 80,000 square meters of intelligent production base, annual output of 50,000 tons of high-purity polysilicon and 3GW of monocrystalline silicon wafers
✅ Quality Control: Passed ISO 9001/14001/IATF 16949 three-system certification, product purity reaches 99.9999% (6N grade)
✅ Quick response: 24-hour multilingual technical service team, 72-hour global emergency delivery mechanism

[Star Product Matrix]

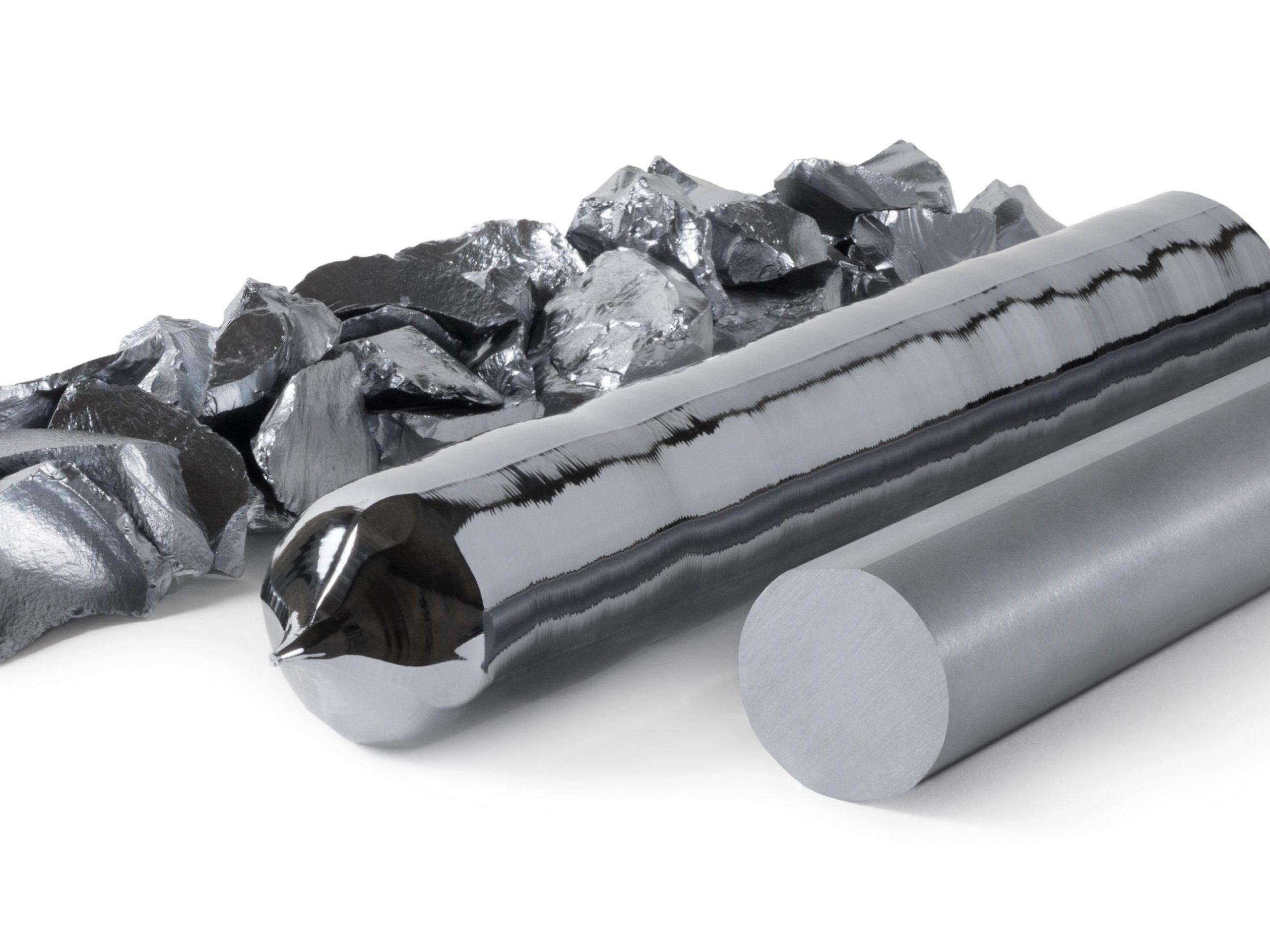

▶ High-purity silicon materials: solar-grade polysilicon (purity ≥6N), electronic-grade monocrystalline silicon ingots (Φ200-300mm)
▶ Silicon-based deep-processing products: ultra-thin monocrystalline silicon wafers (thickness below 150μm), customized silicon profiles (containing boron/phosphorus doping)
▶ New silicon compounds: nano silicon powder (particle size 50-200nm), organic silicon intermediates (DMC purity ≥ 99.8%)

[Smart supply chain system]
Build a "dual circulation" global delivery network:
✓ Smart warehousing: Luoyang polysilicon bonded warehouse + Shanghai Free Trade Zone silicon wafer turnover warehouse collaborative operation
✓ Green logistics: dedicated vehicle transportation system (anti-oxidation/anti-breakage design), China-Europe train silicon material special train normal operation
✓ Digital tracking: self-developed MES system to achieve full life cycle traceability management of silicon materials

[Service Commitment]
From laboratory research and development to mass production support, we provide:
▷ Free technical consultation (20 years of photovoltaic/semiconductor expert team support)
▷ Customized solutions (52 industry application cases have been successfully applied, including TOPCon/HJT battery process package)
▷ Warranty upgrade plan (key products enjoy 24 months of quality assurance + residual stress test report)

Choosing X Industry Limited means choosing a full-cycle partner for silicon-based materials. Let us work together to promote breakthrough development in strategic industries such as clean energy, chip manufacturing, and new ferroalloy materials!

  • X Industry Limited has been focusing on the ferroalloy industry for 21 years!

    Main products: silicon materials, ferroalloys, manganese materials, carburizers, etc. ​Material properties: Silicon's diamond-like crystal structure gives it excellent semiconductor properties (bandgap width 1.12 eV), and it also has high temperature stability (melting point 1414℃) and low expansion coefficient (2.6×10⁻⁶/K), which is perfectly adapted to the needs of microelectronics and extreme environments. ​Application breadth: Covering three core areas: semiconductors (accounting for 35% of global silicon consumption), photovoltaics (monocrystalline silicon cell conversion efficiency exceeds 26.8%), and alloys (magnetic permeability of silicon steel sheets increased by 40%), supporting the modern industrial system.

  • Empowering the entire industry chain: precise solutions from silicon materials to terminal applications

    Upstream control: Control 80% of the world's high-purity silicon material production capacity (monocrystalline silicon wafer purity up to 11N), and deploy low-cost silicon mining belts such as Xinjiang/Yunnan in China and Texas in the United States. ​Downstream collaboration: Jointly develop 300mm large silicon wafer technology with TSMC/Samsung, provide customized doping solutions (boron/phosphorus doping concentration ±1×10¹⁹ cm⁻³), and reduce customer chip manufacturing defect rate to 0.01ppm.

  • Global leader in silicon-based technology: from crystal growth to industrial ecosystem construction

    Technology patents: Owning more than 150 CZ process patents, crystal defect density ≤50/cm², and yield rate exceeding 99.99%. ​Ecological layout: Holding the world's top 3 silicon wafer companies (SUMCO, Shin-Etsu Chemical, GlobalWafers), building a closed-loop ecosystem of "silicon materials-silicon wafers-equipment-terminals".

  • Silicon-based era: underlying material logic from chips to energy

    ​Semiconductor field: As an advanced process substrate material below 7nm, it supports the continuation of Moore's Law (TSMC N3 process transistor density reaches 291 MTr/mm²). ​Photovoltaic field: The mass production efficiency of monocrystalline PERC cells exceeds 24%, and the life of silicon-based components exceeds 30 years (LCOE drops to US$0.03/kWh). ​New materials field: Silicon carbide (SiC) substrates have achieved 6-inch mass production, with a breakdown field strength of 3 MV/cm, driving the efficiency of new energy vehicle inverters to 99%.

    • Contact us

    If you're interested in our products or have any questions, please kindly describe your requirement in detail. Our professional team will reply to you as soon as possible.

    [email protected]

    Please feel free to contact us!

    [email protected] +8619396468788 Skype +8619396468788 Leave Message
